Ajax AutoCompleteExtender control example in asp.net C#,VB.Net using web service
Now in this article i am going to explain How to use Ajax AutoCompleteExtender control in asp.net using C# and VB.Net using web service.
The concept is simple. When you
start typing in the TextBox, AutoCompleteExtender fetches the matching strings
from the database and display while typing e.g. when you type a single
character ‘m’ in the TextBox then all the Qualifications starting with ‘m’ will
be fetched and displayed.
There are two ways to
implement AutoComplete functionality:
1) Using Web Service
2) Using Static Method
In this example we will learn the first
method i.e. auto complete using Web
Service.
I will explain How to show automatic
suggestions from database using AutoCompleteExtender control using Static
Method in my next article.
Implementation: Let's create an asp.net sample website application to see it in action.
Implementation: Let's create an asp.net sample website application to see it in action.
- Create a DataBase in SQL Server e.g. "MyDataBase"and create a table in that DataBase and Name it "Qualification_ Table" as shown in figure below:
- Create ConnectionString in the web.config file as :
<connectionStrings>
<add name="conStr" connectionString="Data Source=LALIT;Initial Catalog=MyDataBase;Integrated
Security=True"/>
</connectionStrings>
Note: Replace the Data Source and the Initial Catalog as per your application.
In the <Body> tag of the design page place a ScriptManager
from the AJAX Extensions category of visual studio tool toolbox and Place a
TextBox control. Also drag AutoCompleteExtender control form Ajax
toolkit.
- If you don’t know how to install Ajax control toolkit then read the article How to install Ajax Control Toolkit in Visual Studio?
<asp:ScriptManager ID="ScriptManager1" runat="server"></asp:ScriptManager>
<fieldset style="width:260px;">
<legend>AutoCompleteExtender
control example</legend>
Qualification: <asp:TextBox ID="txtQualifications" runat="server"></asp:TextBox>
<asp:AutoCompleteExtender ID="AutoCompleteExtender1" runat="server"
TargetControlID="txtQualifications"
ServicePath="Qualifications.asmx"
ServiceMethod ="FetchQualifications"
MinimumPrefixLength="1"
CompletionSetCount="20"
CompletionInterval="0"
EnableCaching="true">
</asp:AutoCompleteExtender>
</fieldset>
- Notice that on the design page(.aspx) a new directive:
<%@ Register Assembly="AjaxControlToolkit" Namespace="AjaxControlToolkit" TagPrefix="asp" %>
is automatically added on dragging
the AutoCompleteExtender control form Ajax toolkit in the very second line just
below the <@page> directive which is always very first line of the design
page(.aspx)
- The properties of AutoCompleteExpender con troll that are used in this example are as follows:
TargetControlID - The TextBox control where the user types content to
be automatically completed e.g. In our case Qualification TextBox.
ServicePath: The path of the Web service from where extender will call the method to fetch the Qualifications.
ServiceMethod - The web service method that we created for fetching
The list of Qualifications from the database.
MinimumPrefixLength - Minimum number of characters that must be entered
before getting suggestions e.g. if you type ‘a’ then matching string starting
with character ‘a’ will appear.
CompletionInterval - Time in milliseconds when the timer will kick in to
get suggestions using the web service. Always keep it as low as you can so that
it fetches the suggestion immediately. If you set CompletionInterval
=1000 then it means it is set to 1 second because 1000 milliseconds =1
second.
EnableCaching – It is a Boolean property to check whether client
side caching is enabled or disabled.
CompletionSetCount - Number of suggestions to be retrieved from the web
service.
C#.NET Code to implement auto complete on TextBox in asp.net

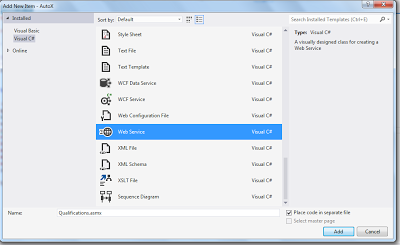

- Add a web service in the project: for this go to Website menu -> Add new item -> select Web Service and name it Qualifications.asmx as shown in fig below:
- Qualifications.asmx web service will be added in your project and a new folder App_Code will also be created in your project and under this folder there will be Qualifications.cs file as shown in fig below.
- Now in the Qualifications.cs file create a web method and it will look like as :
/// <summary>
/// Summary description for
Qualifications
/// </summary>
[WebService(Namespace
= "http://tempuri.org/")]
[WebServiceBinding(ConformsTo
= WsiProfiles.BasicProfile1_1)]
// To allow this Web Service to be
called from script, using ASP.NET AJAX, uncomment the following line.
[System.Web.Script.Services.ScriptService]
public class Qualifications :
System.Web.Services.WebService {
public Qualifications () {
//Uncomment the following line if using designed
components
//InitializeComponent();
}
[WebMethod]
public List<string> FetchQualifications(string prefixText)
{
System.Data.SqlClient.SqlConnection con = new System.Data.SqlClient.SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings["conStr"].ToString());
con.Open();
System.Data.SqlClient.SqlCommand cmd = new System.Data.SqlClient.SqlCommand("select
* from Qualification_Table where Qualification like @QualName+'%'",
con);
cmd.Parameters.AddWithValue("@QualName", prefixText);
System.Data.SqlClient.SqlDataAdapter da = new System.Data.SqlClient.SqlDataAdapter(cmd);
System.Data.DataTable dt = new System.Data.DataTable();
da.Fill(dt);
List<string> QualNames = new List<string>();
for (int i = 0; i < dt.Rows.Count; i++)
{
QualNames.Add(dt.Rows[i][1].ToString());
}
return QualNames;
}
}
.
VB.NET Code to implement auto complete on TextBox in asp.net
- Add a web service in the project: for this go to Website menu -> Add new item -> select Web Service and name it Qualifications.asmx as shown in fig below:
 |
| Click on the image to enlarge |
- Qualifications.asmx web service will be added in your project and a new folder App_Code will also be created in your project and under this folder there will be Qualifications.vb file as shown in fig below
- Now in the Qualifications.vb file create a web method and it will look like as :
' To allow this Web Service to be
called from script, using ASP.NET AJAX, uncomment the following line.
<System.Web.Script.Services.ScriptService()> _
<WebService(Namespace:="http://tempuri.org/")>
_
<WebServiceBinding(ConformsTo:=WsiProfiles.BasicProfile1_1)>
_
<Global.Microsoft.VisualBasic.CompilerServices.DesignerGenerated()>
_
Public Class Qualifications
Inherits System.Web.Services.WebService
<WebMethod()> _
Public Function FetchQualifications(prefixText As String) As List(Of String)
Dim con As New System.Data.SqlClient.SqlConnection(System.Configuration.ConfigurationManager.ConnectionStrings("conStr").ToString())
con.Open()
Dim cmd As New System.Data.SqlClient.SqlCommand("select
* from Qualification_Table where Qualification like @QualName+'%'",
con)
cmd.Parameters.AddWithValue("@QualName",
prefixText)
Dim da As New System.Data.SqlClient.SqlDataAdapter(cmd)
Dim dt As New System.Data.DataTable()
da.Fill(dt)
Dim QualNames As New List(Of String)()
For i As Integer = 0 To dt.Rows.Count - 1
QualNames.Add(dt.Rows(i)(1).ToString())
Next
Return QualNames
End Function
- Now run the website and check by entering single character of the qualification name that is in your Database table. It will show all the matching Qualifications starting with entered character.
